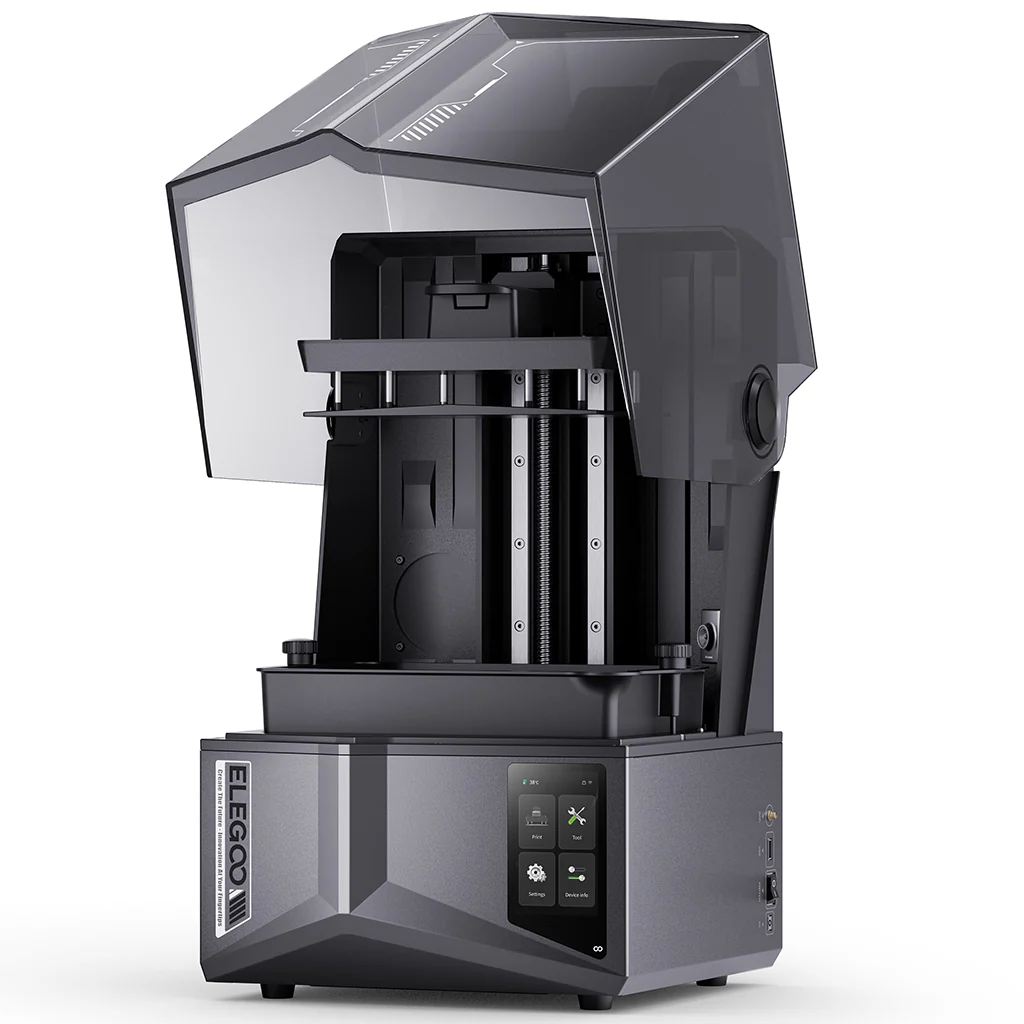

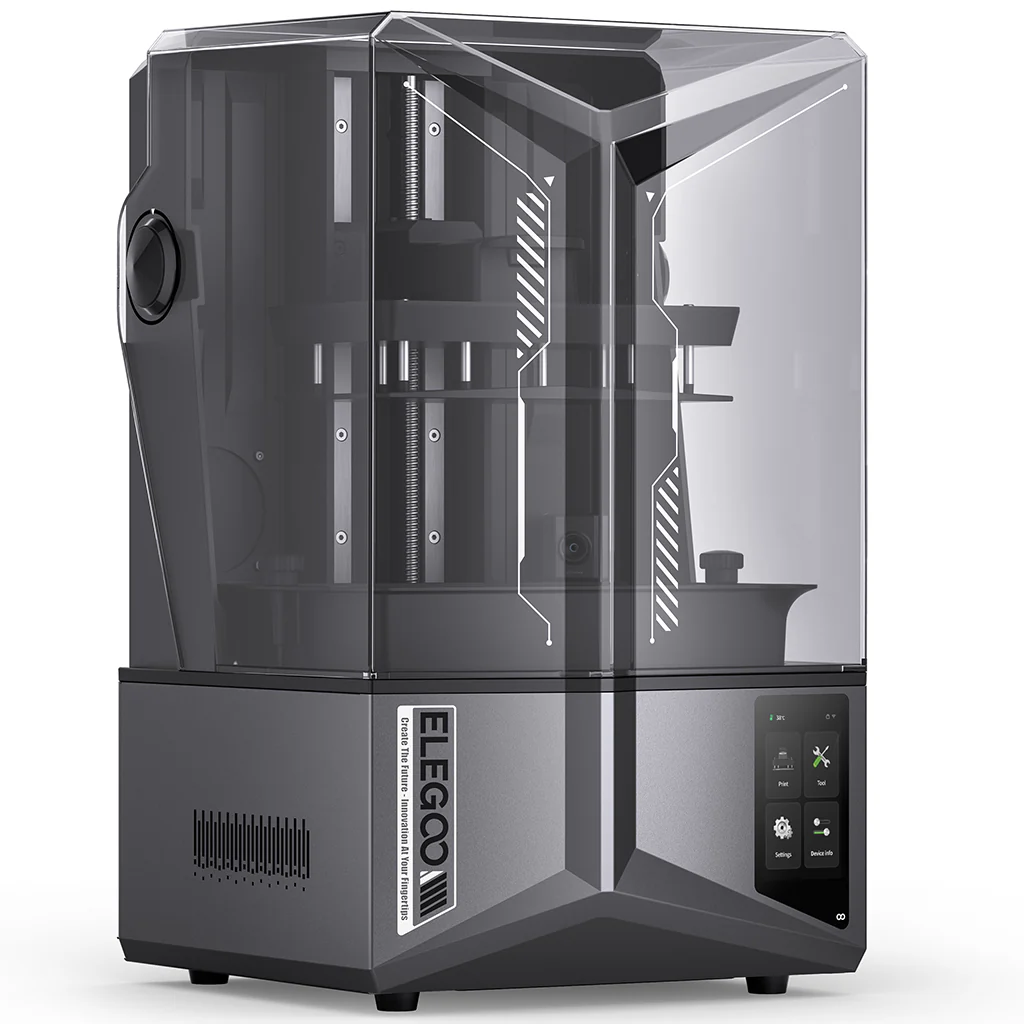

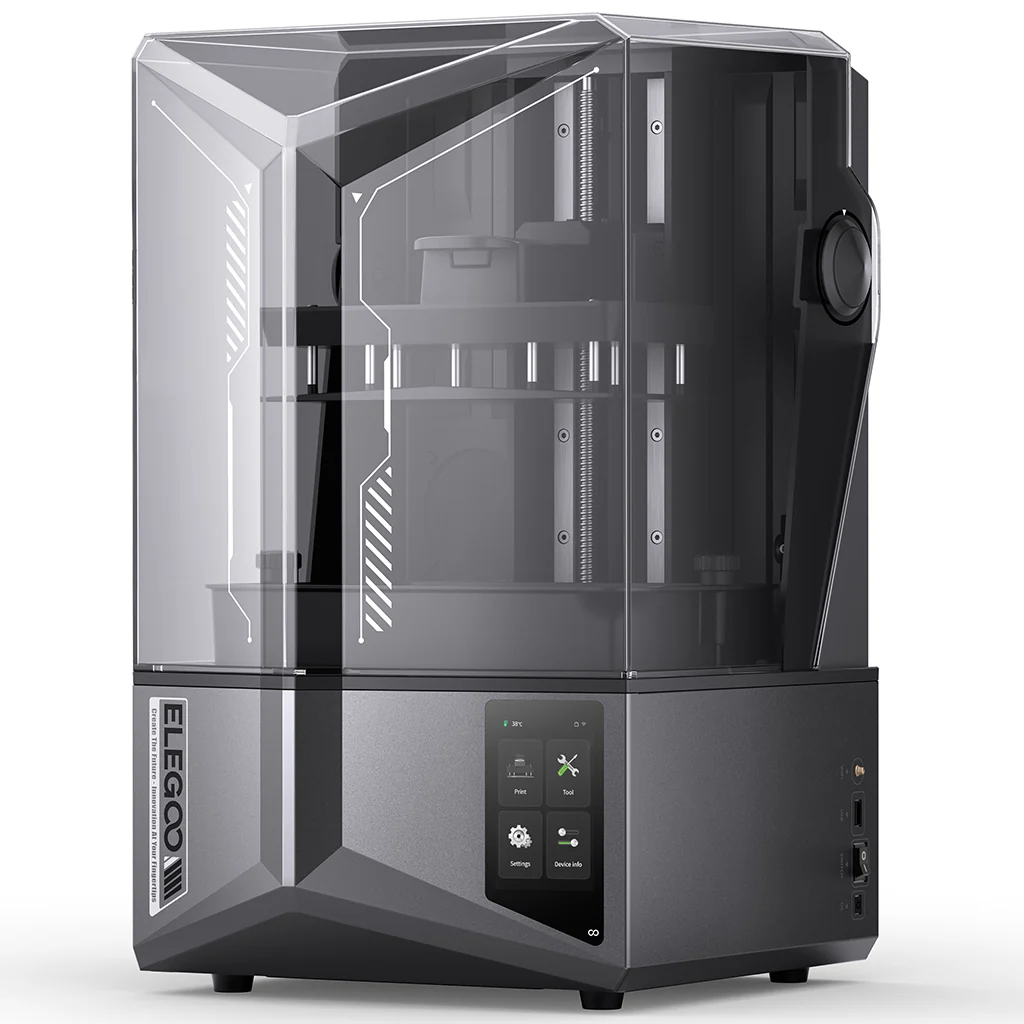

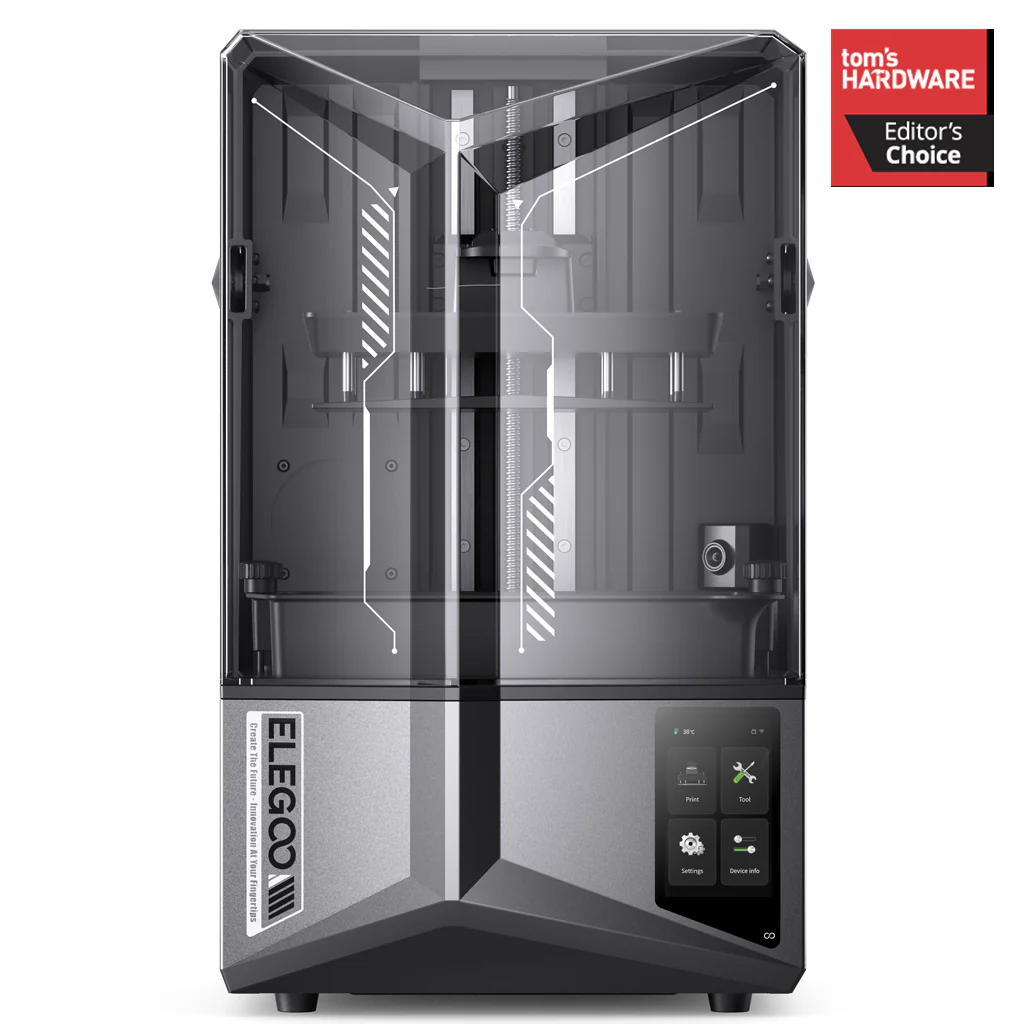

Elegoo Saturn 4 Ultra

Technology:
Made In: China
Bed size: 218.88 x 122.88 x 220
Need Help?

Questions?
We’re here to help. Schedule a call with TrustAdditive Experts.

Bed size (in mm)

218.88 x 122.88 x 220

Print speed (in mm/sec)

150 mm/h

All Sensors

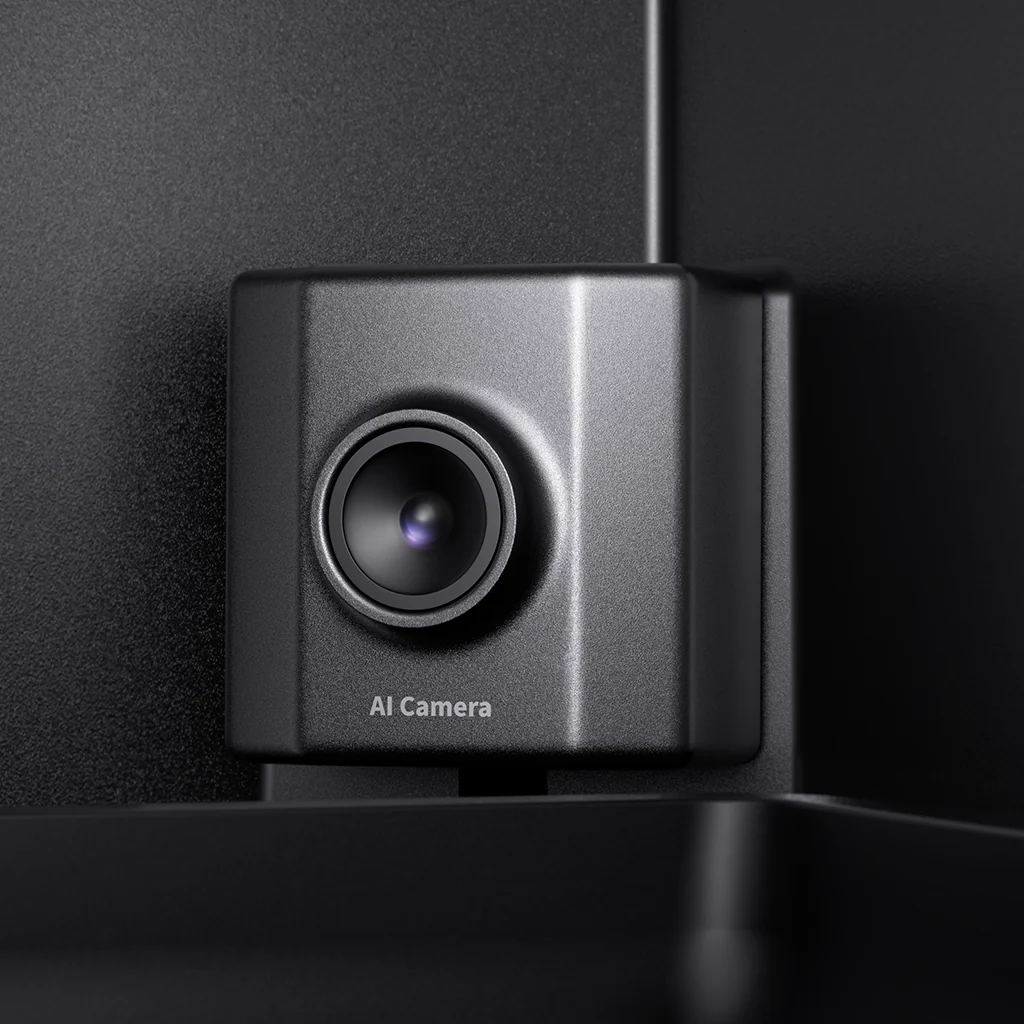

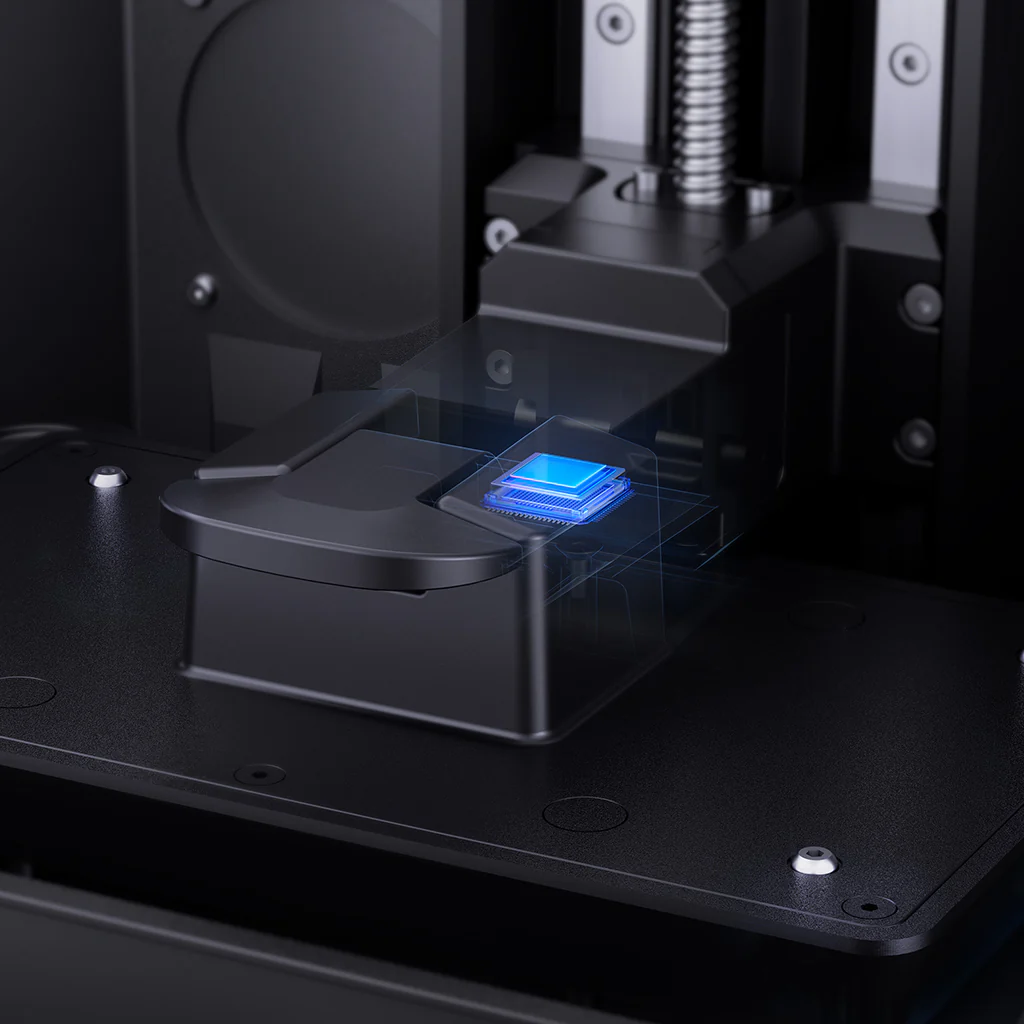

4.0-inch Capacitive Touch Screen, AI Camera for real-time Monitoring and timelapse photography, Leveling Failure Alarm), Mechanical sensor to detect residue, Resin shortage detection

XY Resolution (Microns)

19*24um (11520*5120)

Layer Thickness (Microns)

10 - 200

Machine Size (mm)

327.4 x 329.2 x 548

Machine Weight (Kg)

14.5

Body

Metal and Acrylic

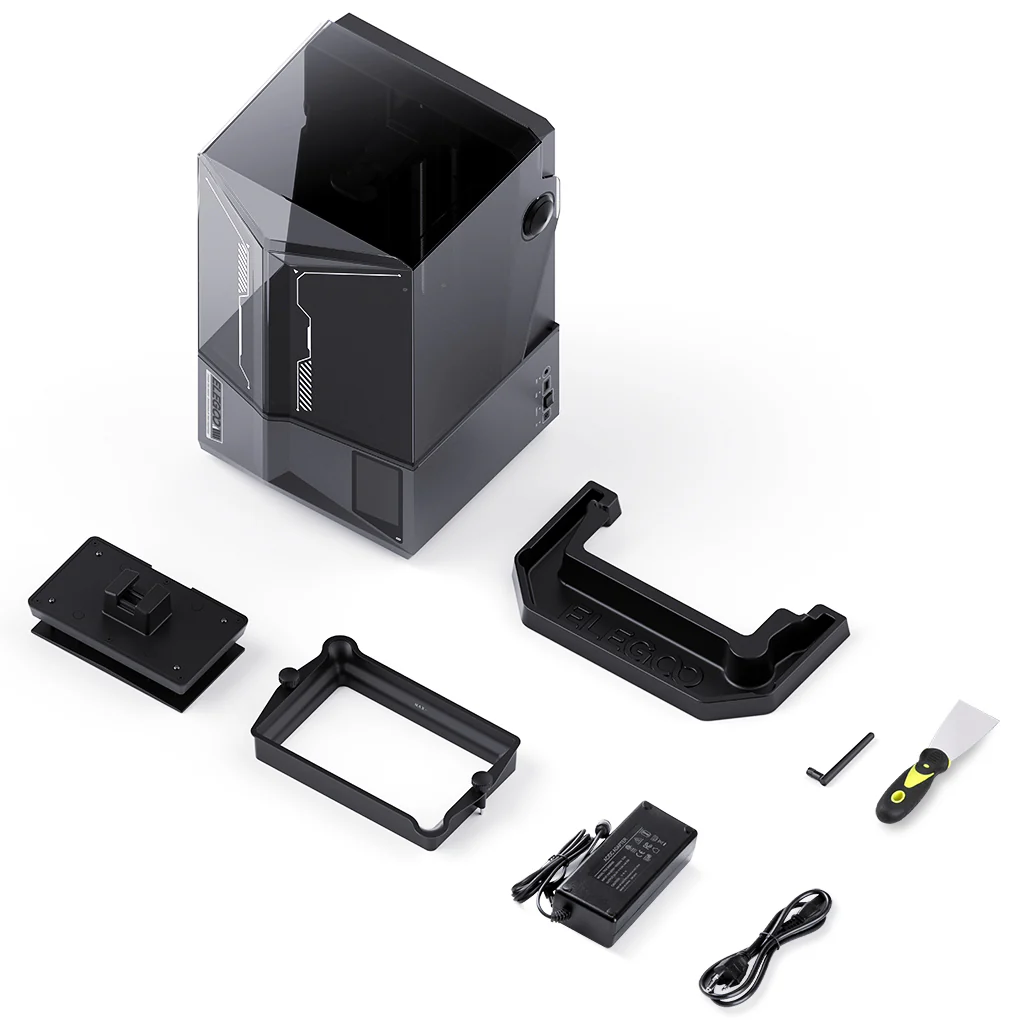

Accessories

Gloves, Mask, USB Flash Drive, Funnel, Scraper, Tool Kit

Internal Temperature

No info from Manufacturer

Projector Life

-

UV LED Wavelength

-

Connectivity

USB, WiFi

Touchscreen

USB, WiFi

Material

Resin

Material Support

Third-party Material Support

Material Compatibility

Standard, Clear, ABS-like, Plant-based, Tough, Rigid, Water-Washable resin

Resin Fill System

Manual

System Requirements:

MacOS, Windows

Slicing software:

AutodeskÊFusion, ChiTuBox, Others

Supported format:

OBJ, STL

Industry

Consumer Goods

Max. power consumption (W)

-

Additional Features

Tilt Release Technology, Multi-lingual UI

Projector Specifications

COB Light Source + Fresnel Collimating Lens (wavelength 405nm)

Overview

The Elegoo Saturn 4 Ultra is a resin 3D printer that combines speed and precision. Its 12K resolution monochrome LCD screen delivers exceptional detail, capturing intricate features in every print. The large build volume allows for the creation of sizable models or multiple smaller ones in a single batch.

With an efficient cooling system, the Saturn 4 Ultra maintains optimal printing temperatures, reducing the risk of overheating. The printer's sturdy construction minimizes vibrations, ensuring consistent print quality. Its compatibility with various resins offers versatility for different project requirements.

What's Good Here?

12K Monochrome LCD Delivers ultra-high-resolution prints with exceptional surface detail.

Advanced Cooling System Ensures better heat dissipation for prolonged printer lifespan.

Stable Printing Performance Enhanced build platform and motion system for consistent results.
